Waterproof slip ring with IP65 dustproof & waterproof
  • Waterproof slip ring with IP65 dustproof & waterproof
  • Waterproof slip ring with IP65 dustproof & waterproof
  • Waterproof slip ring with IP65 dustproof & waterproof
  • Waterproof slip ring with IP65 dustproof & waterproof
  • Waterproof slip ring with IP65 dustproof & waterproof
  • Waterproof slip ring with IP65 dustproof & waterproof
  • Waterproof slip ring with IP65 dustproof & waterproof

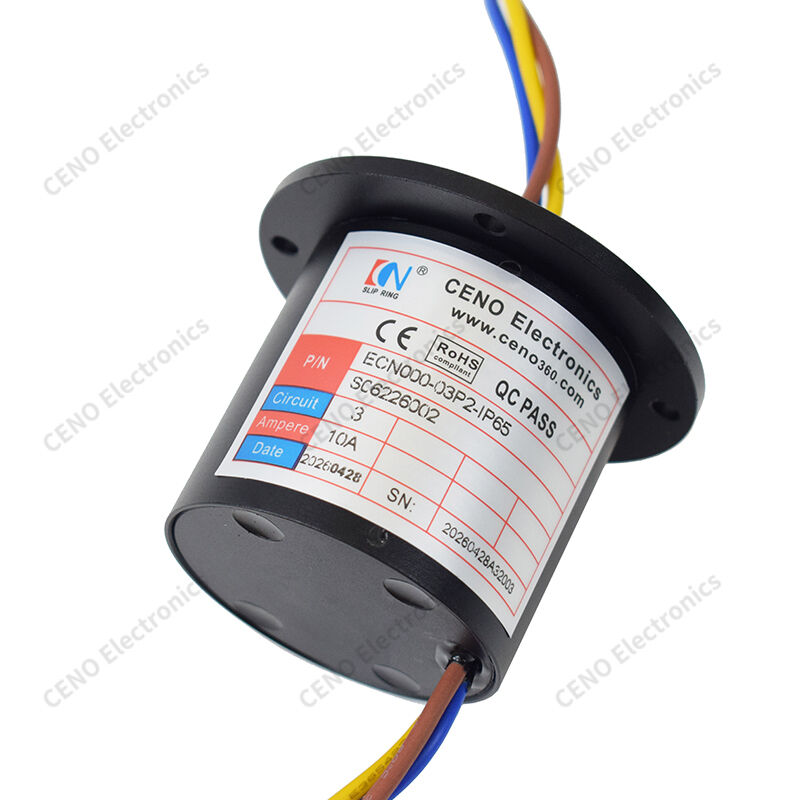

Waterproof slip ring with IP65 dustproof & waterproof

Waterproof slip ring with IP65 dustproof & waterproof

Lieu d'origine Chine
Nom de marque CENO
Certification CE,RoHS,ISO9001,UL
Numéro de modèle ECN000-03P2-IP65
Détails du produit
Protection (grade IP):
IP65
Humidité de travail:
60% HR
Température de travail:
-20 ℃ ~ + 60 ℃
Tension nominale:
0~24VAC/VDC
Circuits et courant:
3 circuits *10A(24V)
Rigidité diélectrique:
≥1000VAC@50Hz
Résistance d'isolation:
500MΩ@500VDC
Bruit électrique:
Max 30 mΩ (50 tr/min)
Longueur du fil de plomb:
Rotor : 2 000 mm ; Stator : 2000 mm
Vitesse de travail:
0 ~ 10 tr / min
Mode de rotation:
Installation de la bride latérale du stator
matériel de contact:
Métal précieux
Matériau du boîtier:
Alliage d'aluminium
Conditions de paiement et d'expédition
Quantité de commande min
1 pièces
Prix
Négociable
Détails d'emballage
Carton/comme demande
Délai de livraison
1 semaine
Conditions de paiement
T/T, PayPal, Western Union
Capacité d'approvisionnement
500 pièces par mois
Description du produit

Waterproof slip ring with IP65 dustproof & waterproof

ECN000-03P2-IP65  is CENO  Waterproof slip ring features 3 independent circuits with 10A current per channel, rated IP65 dustproof & waterproof for wet/outdoor rotating equipment. Adopting precious metal contact structure, it enables 360° unlimited rotation power transmission without wire tangling. Black anodized metal housing with flange mounting holes for easy installation, certified CE & RoHS compliant, factory inspected with stable low contact resistance and long service life.


Features

  • 3 circuits
  • 10A per line
  • IP65 sealed
  • Precious metal contact
  • Flange mount
  • CE RoHS certified

Applications

  • Rotating camera pan-tilt
  • Outdoor rotary light
  • Automated rotary jig
  • Small robot joint
  • Car wash rotary unit
  • Packaging machinery

Optional

  • Custom wire length
  • Extra circuits
  • Higher current
  • Higher IP grade
  • Special voltage
  • Custom housing color

Specification

ECN000-03P2-IP65

Specification

Protection(IP Grade)

IP65

Working Humidity

60%RH

WorkingTemperature

-20℃~+60℃

Rating Voltage

0~24VAC/VDC

Circuits& Current

3 Circuits *10A(24V)

Dielectric Strength

≥1000VAC@50Hz

Insulation Resistance

500MΩ@500VDC

Electrical Noise

Max 30mΩ(50rpm)

Lead Wire Length

Rotor: 2000mm; Stator:2000mm

Working Speed

0~10 rpm

Rotation Way

Stator side flange installation

Contact Material

Precious Metal

Housing Material

Aluminum Alloy


Outline drawing

 Waterproof slip ring with IP65 dustproof & waterproof 0

CENO is a technologically advanced company in the slip ring field, specializing in research and development, manufacturing, and sales. We utilize advanced equipment and high-precision test instruments to ensure product quality and reliable performance. Our facility covers 3000 square meters and is located in Shenzhen, China.

CENO manufacturing facility and production environment
Certifications

ISO9001, CE, RoHS, UL, Explosion-proof

CENO product certifications and quality standards
CENO Advantage

Our engineering team members have more than 10 years of experience in slip ring technology. Operators working on critical procedures are all qualified through internal training programs.

Services Provided
  • 24/7 consultant service
  • Mass and customized production
  • Solution offerings for 360° rotation systems
Welcome to consult us with your requests for any 360° rotation system. We will provide one-stop service and respond to your inquiries promptly.
