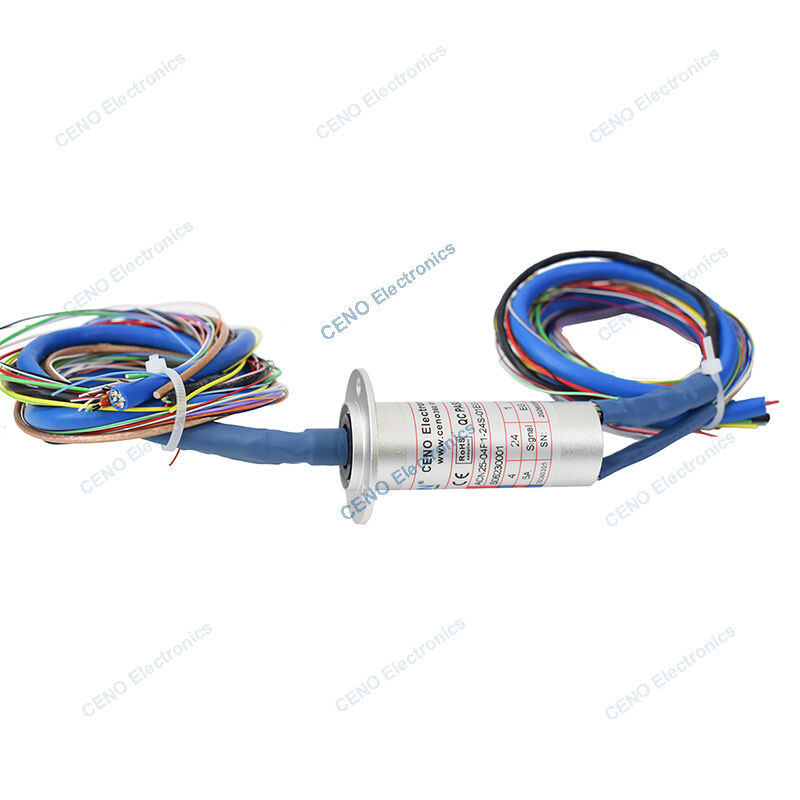

HDMI Capsule Slip Ring with Electric Power & 1000M Ethernet for Drone
ACN25-04P1-24S-01EG-01HD is CENO Capsule slip ring with HDMMI signal. HD slip rings include SDI HD and HDMI, which can transmit electrical signals, HD video signals, and high-speed digital signals at the same time, meeting EMC electromagnetic compatibility requirements. CENO’s high-definition slip rings use the leading domestic defance technology and have the advantages of stable transmission, ultra-low signal attenuation loss and transmission fluctuation. For more information please contact us.
Features
- Support video standards up to 2K @ 90Hz, No flash screen no frame loss
- Compact structure can combine kinds data, signal and electric power
- Install easy & Free maintenance
Applications
- Automatic machine
- Aircraft models
- Cable equipment
- Special vehicles and ships
- Medical equipment
Optional
- Circuit, Voltage, Current
- Signals and data
- Contact / Housing Materials
- Protection grade
- Working speed & temperature
Specification
|
ACN25-04P1-24S-01EG-01HD Specification
|
|
Current & Circuits
|
4 * 5A; 20 * Signal; 1 * RS485; 1*HD-SDI; 1 * 1000M Ethernet Signal
|
|
Rating Voltage
|
0 ~ 110 VAC/VDC
|
|
Dielectric strength
|
≥200VAC@50Hz; ≥100VAC@50Hz
|
|
Isolation resistance
|
≥50MΩ@200VDC; ≥10MΩ@100VDC
|
|
Contact resistance wave
|
≤ 35mΩ
|
|
Working temperature
|
-20°C~+60°C
|
|
Working humidity
|
60%RH
|
|
IP protection grade
|
IP40
|
|
Operating speed
|
0~200rpm
|
|
Outer diameter
|
Ø25mm
|
|
Contact material
|
Precious Metal
|
|
Housing material
|
Aluminium Alloy
|
Outline Drawing
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
