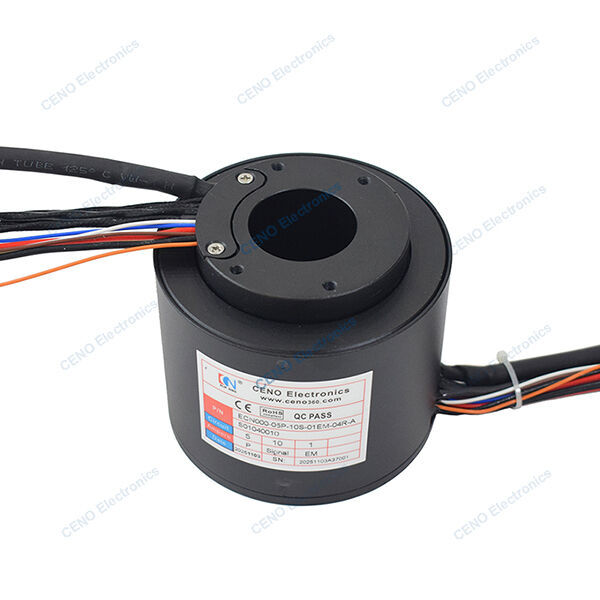

Low Temperature Ethernet Slip Ring with Electric Power for Industry Robot
ECN000-05P-10S-01EM-04R-A is CENO low temperature slip ring combined circuits electric power and Ethernet signal, suit for the equipment working in temperature from -50°C~+70°C. CENO low-temperature slip rings are used in engineering machinery and are specifically designed for harsh operating conditions. They are commonly used in high-altitude airborne equipment, such as aviation instruments, aircraft guidance systems, fuel systems, communication systems, and voice equipment, etc.
Features
- Through hole 3mm-980mm optional
- Capable of operate at an altitude of 1.6*104 m in airborne applications
- Stable transmitting and install easy & Free maintenance
Applications
- high-altitude airborne equip
- Aviation instruments
- Aircraft guidance system
- Fuel system
- Medical equipment
Optional
- Circuit, Voltage, Current
- Signals and data
- Contact / Housing Materials
- Protection grade
- Working speed & temperature
Specification
| ECN000-05P-10S-01EM-04R-A Specification |
| Current & Circuits |
2 circuits * 5A; 3*10A; 10 * Signal; 1 * Ethernet |
| Rating Voltage |
0 ~ 220 VAC/VDC |
| Dielectric strength |
≥1500VAC@50Hz; ≥300VAC@50Hz |
| Isolation resistance |
≥500MΩ@500VDC; ≥100MΩ@300VDC |
| Contact resistance wave |
≤ 10mΩ |
| Working temperature |
-40°C~+65°C; -50°C~+70°C |
| Working humidity |
95 %RH |
| IP protection grade |
IP51 |
| Operating speed |
0~50rpm |
| Outer diameter |
Ø99mm |
| Contact material |
Precious Metal |
| Housing material |
Aluminium Alloy |
Outline drawing
|
Application
|
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
